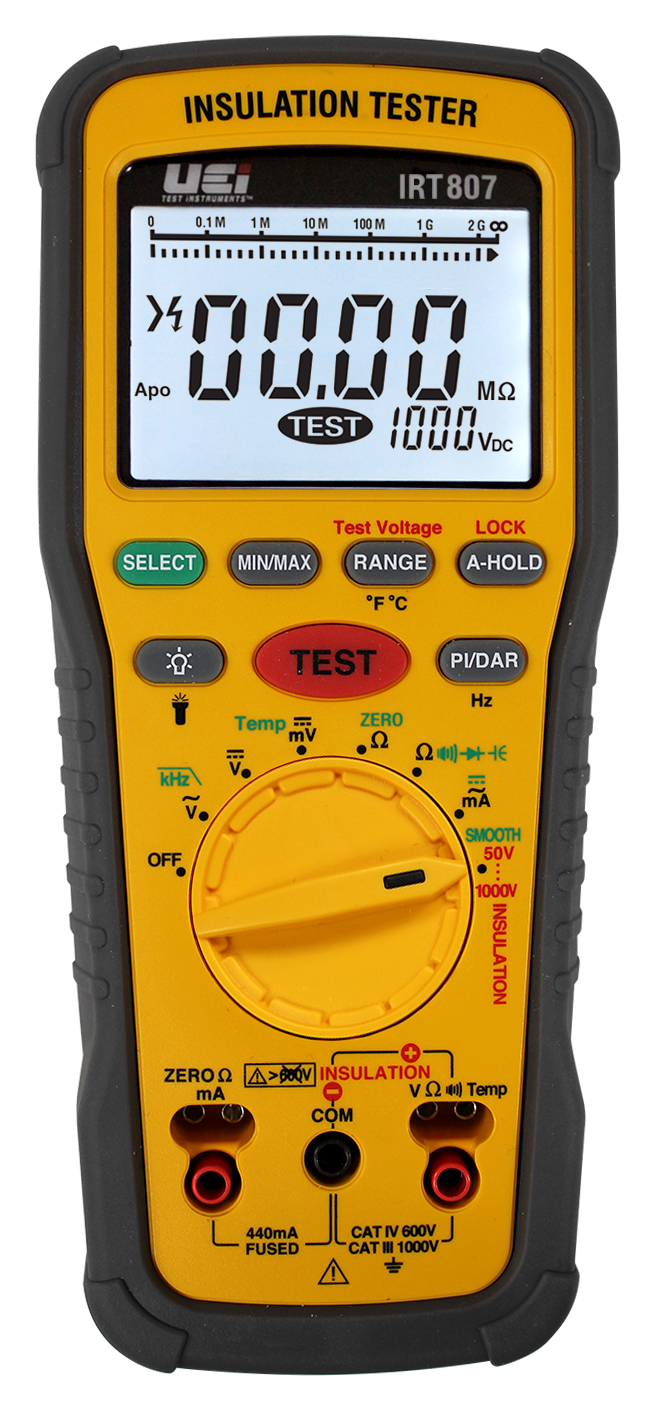

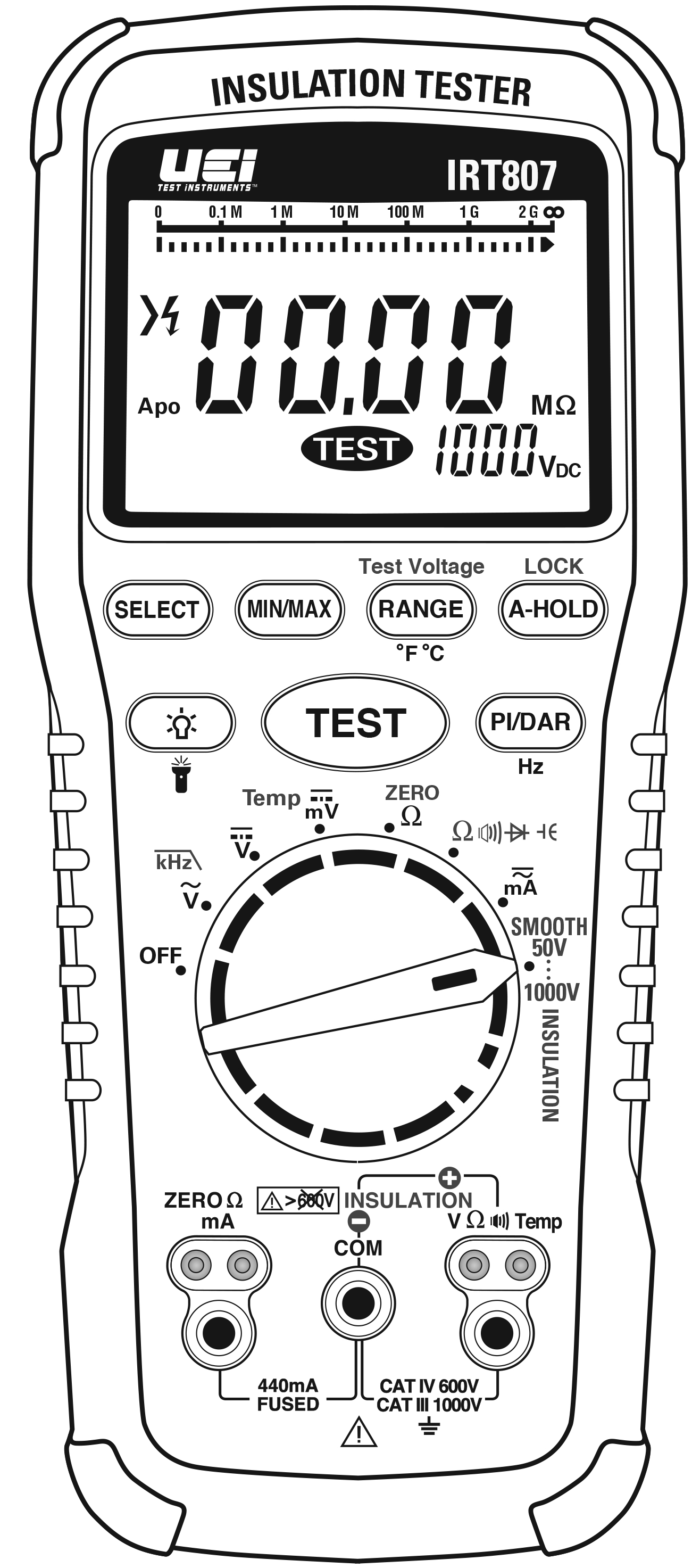

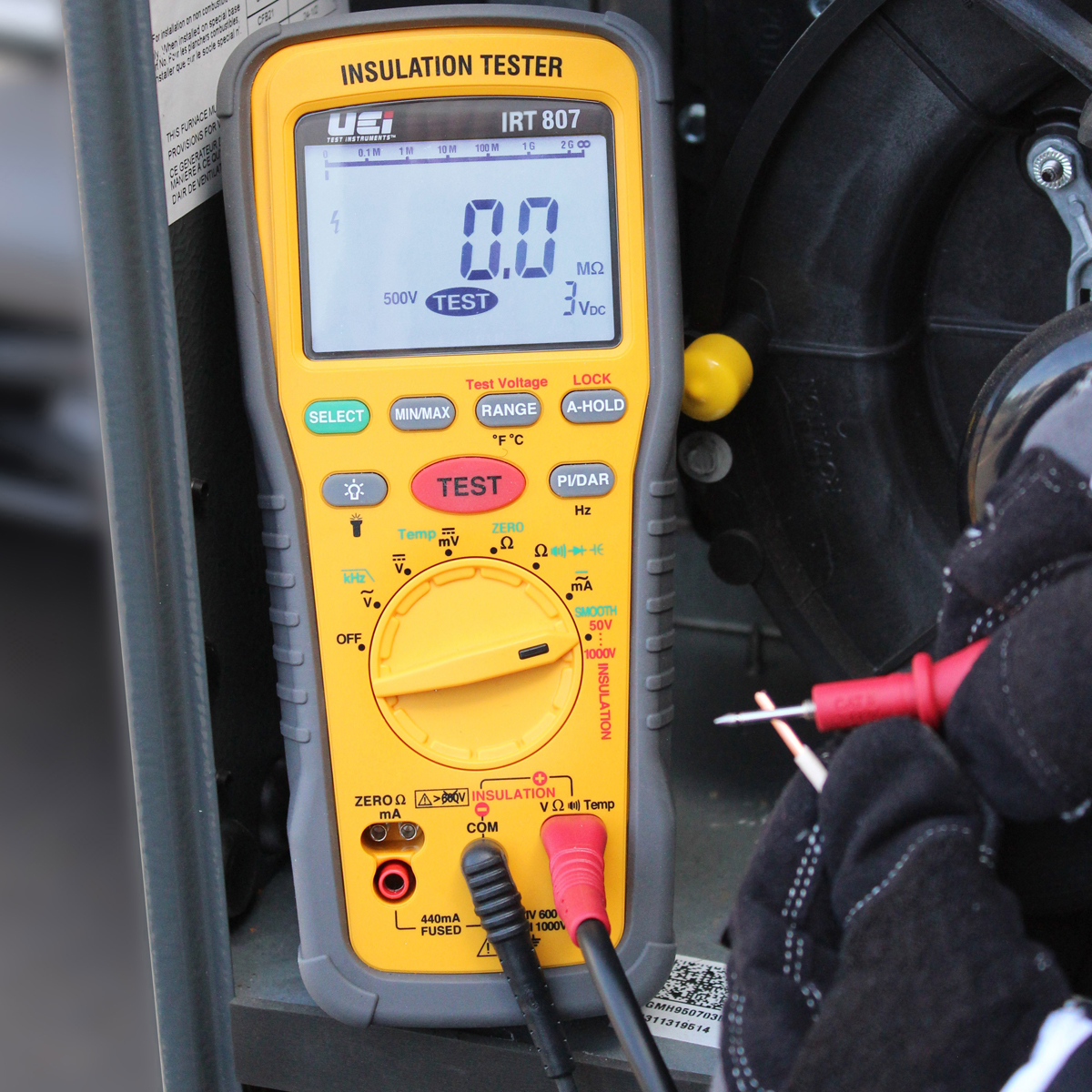

Advanced Insulation Resistance Tester 1000V AC/DC
IRT807

The UEi IRT807 is a digital Insulation resistance tester that has a 1000V AC/DC measurement capability and multimeter functionality. Each meter includes silicone test leads, alligator clips for hands-free testing, and a zippered carrying case.

This meter is safety rated at CAT IV 600V / CAT III 1000V and is drop rated for 6 feet. The IRT807 features a backlit display that shows the test function and measured value. It also features a DMM rotary style selector, protective rubber boot with a kick stand lock, compare, and PI/DAR.

IRT807 is backed by a 1-Year limited warranty.



Hold Yes
Auto Power Off Yes
Backlight Yes
Protective Boot/Overmolding Yes
Kick Stand Yes
Zero Yes
Warranty 1-Year limited
Digital Yes
Compare Reading Yes
PI/DAR Test Yes
Lock Reading Yes

TRMS Yes
AC Volts 1000V
DC Volts 1000V
Resistance (Ohms) 40 MOhms
Earth-bond Resistance Yes
Capacitance (Farads) Yes
Frequency (Hertz) Yes
Temperature Yes
Low Z Yes

IEC 61010 61010-1: 2010 3rd edition
CAT Rating CATIV 600V/CATIII 1000V
RoHS Yes
Drop Protection 6 foot

Manual (Eng) Yes
Test Leads Silicone
Alligator Clips Yes
Batteries AA (4)
Pouch/Case Yes
Insulation Test Probe Yes w/ alligator clips
Optional - Replacement Accessories
ATL92
ATT100
ATT36
ATL57
ATT71
ATT29

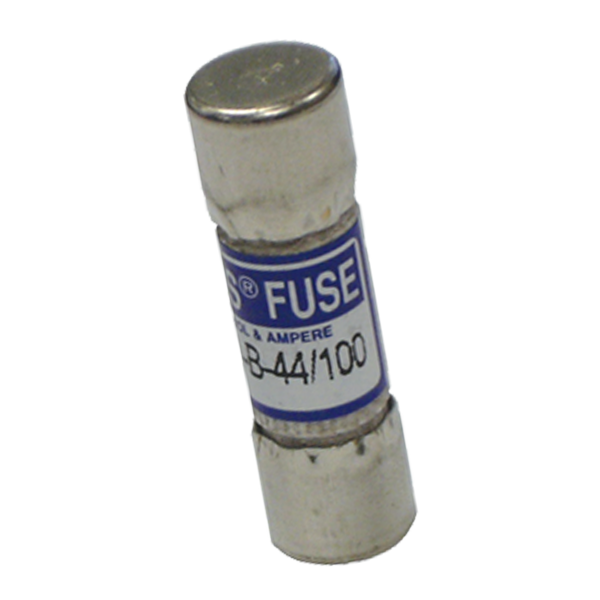

AF38
ATT70
ATT29A
ATTEXT
ATT39
ATT29APACK
