True RMS Multimeter 1000V w/ Temperature
DM515
The DM515 is a True RMS multimeter with HVAC functionality; temperature, milli and micro amps, capacitance, auto/manual ranging and 1000 VAC/VDC
Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads
Hold
Yes
Min/Max
Yes
Ranging
Auto/Manual
Auto Power Off
Yes
Display Count
6000
Low Battery Warning
Yes
Backlight
Yes
Fast Response Min/Max
Yes
Protective Boot/Overmolding
Yes
Kick Stand
Yes
Magnetic Mount
Optional
Warranty
2-Year limited
TRMS
Yes
AC Volts
1000V
DC Volts
1000V
AC Current (Amps)
10A
DC Current (Amps)
10A
AC Micro Current (Amps)
6000µA
DC Micro Current (Amps)
6000µA
DC Microvolts
6µV
AC Microvolts
6µV
Capacitance (Farads)
9999µF
Temperature
-328˚ 2462˚F
Continuity
Yes
Diode
Yes
Ingress Protection
42
ETL Listed
61010-1: 2012 3rd edition
IEC 61010
61010-2-033: 2012 edition
CE Conformity
EN 61010-1: 2010 3rd edition
CAT Rating
CATIII 600V/ CATII 1000V
RoHS
Yes
FCC/IC Compliant
Yes
TOV Protection
Yes
Drop Protection
6 foot
Manual (Eng)
Yes
Manual (Spa)
Yes
Manual (Frn)
Yes
Test Leads
ATL55
Alligator Clips
AAC3
Batteries
AA (2)
Temperature Probe
ATT71
Pouch/Case
AC519
Data Sheet - English
Data Sheet - Spanish
Data Sheet - French
Manual - English
Manual - Spanish
Manual - French
Hi-Res picture
Application Picture
Line Drawing
Loading…
Optional - Replacement Accessories
AAC
Slip-On Alligator Clip Set
AAC3
Screw-On Alligator Clip Set
AC519
Soft Carrying Case (13 inch x 6 inch x 2.75 inch)
ATL1
Modular Test Lead Tips - Fine Point Probe Set
ATL2
Modular Test Lead Tips - Alligator Clip Set
ATL3
Modular Test Lead Tips - Remote Grabber Clip Set
ATL301KIT
Deluxe Modular Test Lead Kit
ATL5
Modular Test Lead Tips - Back Probe Set

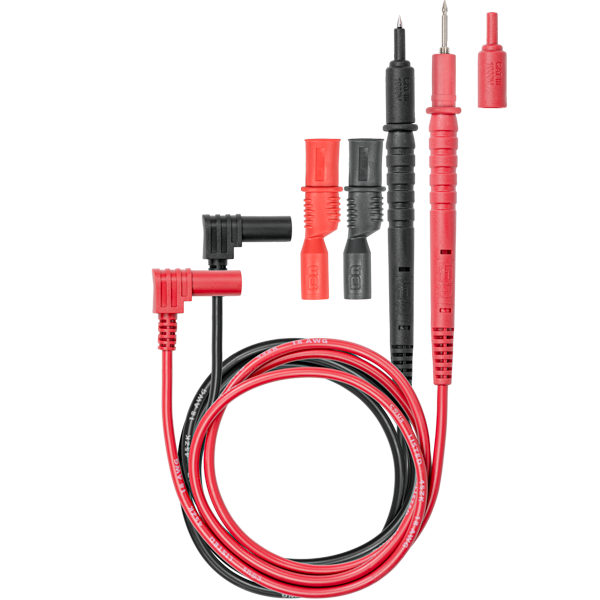

ATL55
Standard Right Angle Test Lead Set

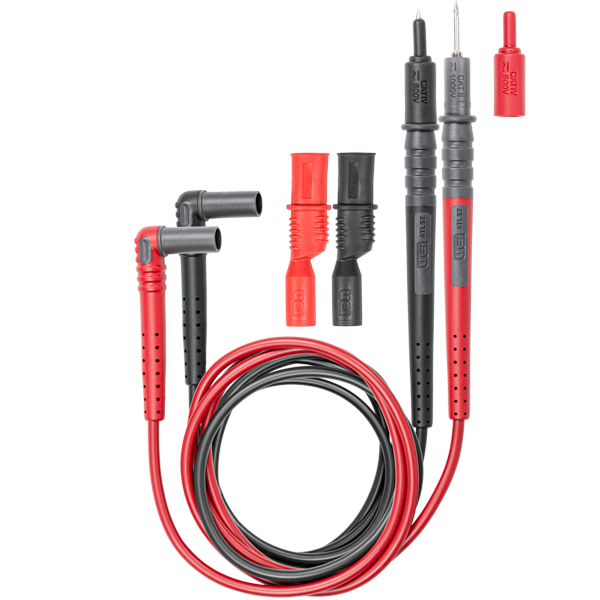

ATL57
Silicone Right Angle Test Lead Set

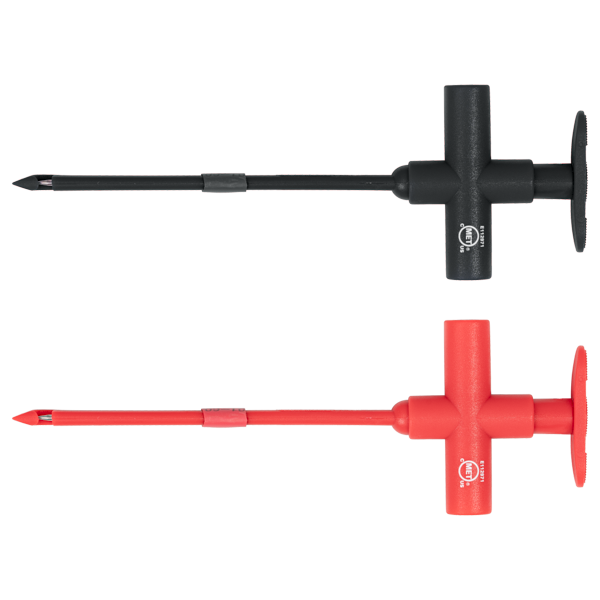

ATL6
Modular Test Lead Tips - Piercing Test Clip Set

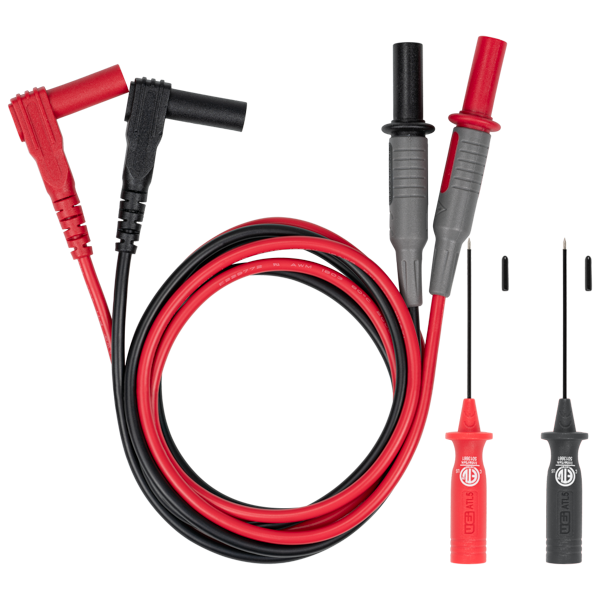

ATLBPK
Modular Back Probe Test Lead Kit

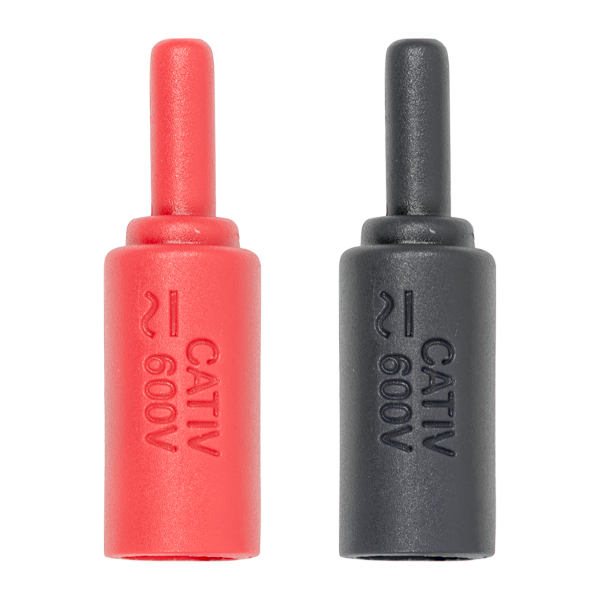

ATLCAP
Test Lead Protective Cap Shield Set

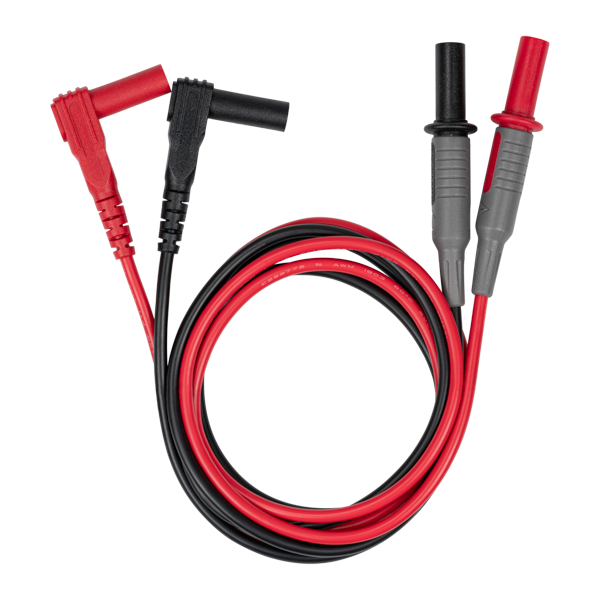

ATLTX
Modular Test Lead Set
