600A TRMS Clamp Meter w/ DC Amps, Differential Temperature, AMH3 Magnet w/ 2 ATTPC4
DL589COMBO

The UEi DL589COMBO includes 2 compact K-Type pipe clamps and a 600A True-RMS HVAC/R clamp meter with a rubberized grip, backlit dual display, and magnetic hanging strap. Each meter includes a set of silicone test leads, 2 K-Type thermocouples, threaded alligator clips for hands-free testing, and a zippered carrying pouch.

The DL589 is safety rated at CAT IV 600V / CAT III 1000V. It features DC Amps, differential temperature readings, Inrush, and DC millivolts as well as functions like AC/DC voltage, NCV, AC amps, AC/DC microamps, resistance, capacitance, frequency and duty cycle.

The UEi ATTPC4 is a wired K-Type pipe clamp with a thermally isolated probe to protect readings from ambient temperatures. Its tough and compact design allows you to make secure connections in workspaces with tight clearances.

DL589COMBO is backed by a 2-Year limited warranty.

Hold Yes
Min/Max Yes
Ranging Auto/Manual
Auto Power Off Yes
Display Count 6000
Low Battery Warning Yes
Backlight Yes
Dual Display Yes
Worklight Yes
Temperature Inputs K-Type
Temperature Differential Yes
DC Zero Yes
Protective Boot/Overmolding Yes
Magnetic Mount Yes
Warranty 2 Year limited
Audible and Visual Alerts Yes
K-Type Input Yes
Digital Yes

TRMS Yes
AC Volts 750VAC
DC Volts 1000VDC
AC Current (Amps) 600A AC
DC Current (Amps) 600A DC
AC Micro Current (Amps) 2000µA
DC Micro Current (Amps) 2000µA
Resistance (Ohms) 60 MΩ
Capacitance (Farads) 2000µF
Frequency (Hertz) 99.99kHz
Duty Cycle (%) 1.0 yo 99.0%
Temperature -328˚ to 2462˚F
Continuity Yes
Diode Yes
NCV Detection Yes
Differential Temperature Yes
K-Type Temperature Range -328˚ to 2462˚F
LRA Inrush Yes
Low Z Yes

ETL Listed cETLus 610101-1: 2012
CAT Rating CATIV 600V
RoHS Yes
FCC/IC Compliant FCC

Manual (Eng) Yes
Test Leads Silicone ATL58
Alligator Clips AAC3
Batteries AAA (4)

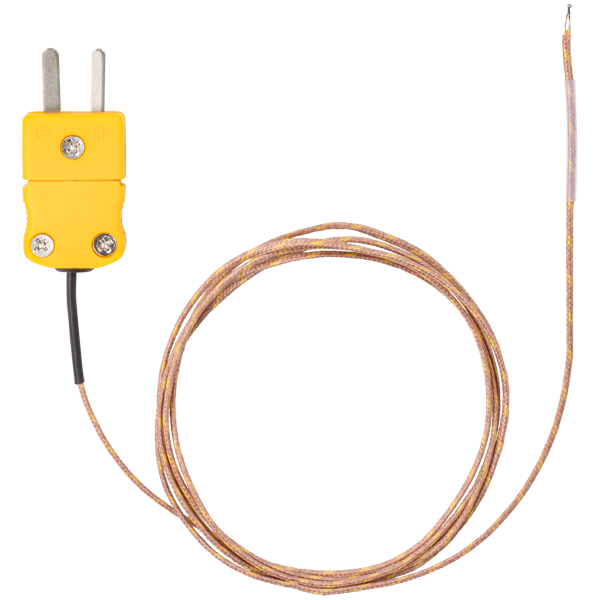

Temperature Probe ATT29 (2)
Pouch/Case Zippered
Pipe Clamp Probe ATTPC4 (2)
K-Type Thermocouples Yes
Back Probes APB3 (2)
Optional - Replacement Accessories
ATL58
AC319
ATTPC4
ATT29
AAC3
