600A Dual Display TRMS-Clamp w/ Temperature, Inrush, AMH2 Magnet
DL579

The UEi DL579 is a 600A True-RMS HVAC/R clamp meter with a backlit dual display and magnetic hanging strap. Each meter includes a set of standard test leads, K-Type thermocouple, threaded alligator clips for hands-free testing, and a zippered carrying pouch.

The DL579 is safety rated at CAT IV 300V / CAT III 600V. It features Non-Contact Voltage (NCV), temperature readings, LOW Z, and DC millivolts as well as functions like AC/DC voltage, AC amps, AC/DC microamps, resistance, capacitance, frequency and duty cycle.

DL579 is backed by a 1-Year limited warranty.

Hold Yes
Min/Max Yes
Ranging Auto/Manual
Auto Power Off Yes
Display Count 6000
Low Battery Warning Yes
Backlight Yes
Dual Display Yes
Temperature Inputs K-Type
Magnetic Mount Yes
Warranty 1 Year limited
Audible and Visual Alerts Yes
K-Type Input Yes
Probe/Lead Storage Yes
Digital Yes

TRMS Yes
AC Volts 750VAC
DC Volts 1000VDC
AC Current (Amps) 600A AC
AC Micro Current (Amps) 2000µA
DC Micro Current (Amps) 2000µA
DC Microvolts 600mV
AC Microvolts 600mV
Resistance (Ohms) 60 MOhms
Capacitance (Farads) 6000µF
Frequency (Hertz) 99.99kHz
Duty Cycle (%) 1.0 to 99.0%
Temperature -328˚ to2462˚F
Continuity Yes
Diode Yes
NCV Detection Yes
LRA Inrush Yes
Low Z Yes

Ingress Protection IP42
ETL Listed cETLus 61010-1: 2012
CAT Rating CATIV 300V/CATIII 600V
RoHS Yes
FCC/IC Compliant FCC

Manual (Eng) Yes
Test Leads ATL55
Alligator Clips AAC3
Batteries AAA (2)
Temperature Probe ATT29 (2)
Pouch/Case AC560
Optional - Replacement Accessories
AC560
ATL57
ABP3
AC319
ATL55
AAC3

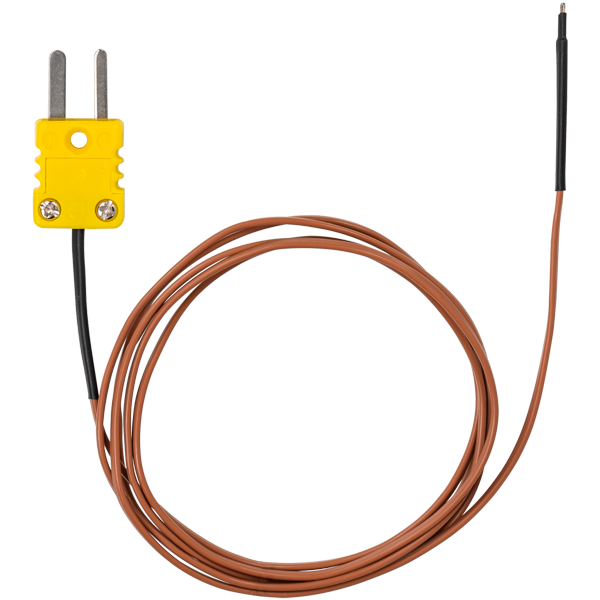

ATT29A
