DL379BCOMBO - Dual Display HVAC Clamp Meter w/ ATTPC3

Home> Products> Clamp Meters> Meter Kits> Dual Display HVAC Clamp Meter w/ Temperature and ATTPC3

Dual Display HVAC Clamp Meter w/ Temperature and ATTPC3

DL379BCOMBO

The DL379BCOMBO HVAC/R Clamp Meter with a CATIV 300V rating, dual level NCV, dual display and a 3-Year limited warranty is a very user friendly clamp meter. The detachable clamp head makes it entirely versatile and the meter for a tech to have in his, or her, tool box. And is combined with the ATTPC3 Pipe Clamp Adapter.

The ATTPC3 is designed for pipes with a diameter between 1/4 in. and 1 15/32 in. It features a 5.5 ft. cable and uses a mini-K-type connector plug.

Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads

Hold	Yes
Min/Max	Yes
Ranging	Auto/Manual
Auto Power Off	Yes
Display Count	4000
Low Battery Warning	Yes
Backlight	Yes
Dual Display	Yes
Worklight	Yes
Temperature Inputs	K-Type
Magnetic Mount	Yes
Warranty	3-Year limited
Hi/Lo Alarm	Yes
K-Type Input	Yes

AC Volts	750V
DC Volts	1000V
AC Current (Amps)	400A
AC Micro Current (Amps)	2000µA
DC Micro Current (Amps)	2000µA
Resistance (Ohms)	40 MΩ
Capacitance (Farads)	2000µF
Frequency (Hertz)	9.999Hz to 199.9kHz
Duty Cycle (%)	Yes
Temperature	-22˚ to 752˚F (-30˚ to 400˚C) meter/-40˚ to 250˚F (-40˚ to 121.1˚C) Pipe clamp
Continuity	Yes
Diode	Yes
NCV Detection	Hi/Lo Levels

Optional - Replacement Accessories

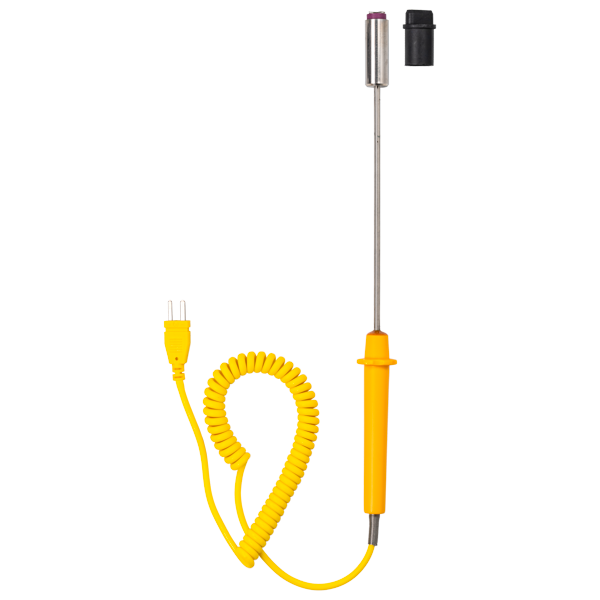

AAC Slip-On Alligator Clip Set	ATL6 Modular Test Lead Tips - Piercing Test Clip Set	ATLTX Modular Test Lead Set	ATT36 K-Type 8 In Surface probe with Handle
AAC3 Screw-On Alligator Clip Set	ATL55 Standard Right Angle Test Lead Set	ATTPC3 Pipe Clamp Probe, K-Type	ATT29 Temperature Probe, K-Type Standard (Fiberglass coated)

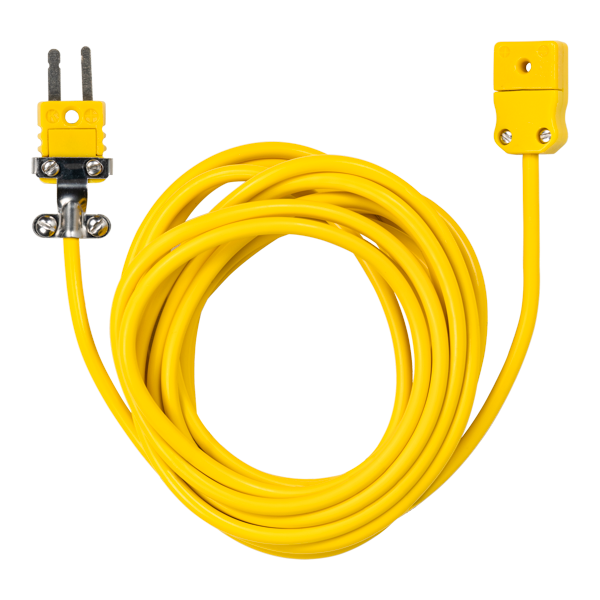

ATL1 Modular Test Lead Tips - Fine Point Probe Set	ATL57 Silicone Right Angle Test Lead Set	ATTPC4 Compact Pipe Clamp Probe, K-Type	ATT29A Temperature Probe, K-Type Standard (Fluoroplastic Coated)

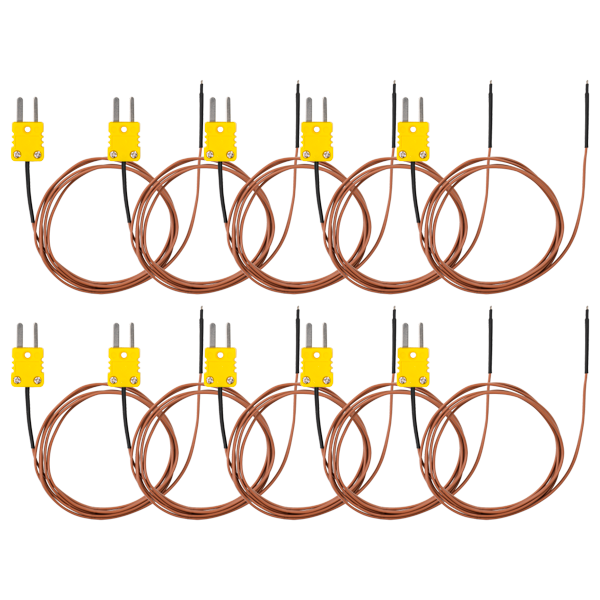

ATL2 Modular Test Lead Tips - Alligator Clip Set	ATL5 Modular Test Lead Tips - Back Probe Set	ATTEXT K-Type Thermocouple 10 ft. Extension Wire	ATT29APACK Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)

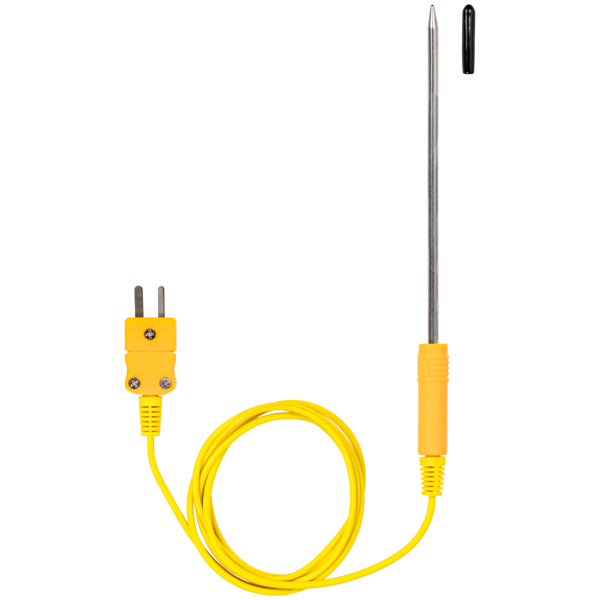

ATL3 Modular Test Lead Tips - Remote Grabber Clip Set	ATLBPK Modular Back Probe Test Lead Kit	ATT100 Temperature Probe, K-Type Liquid 6 In	AC519 Soft Carrying Case (13 inch x 6 inch x 2.75 inch)

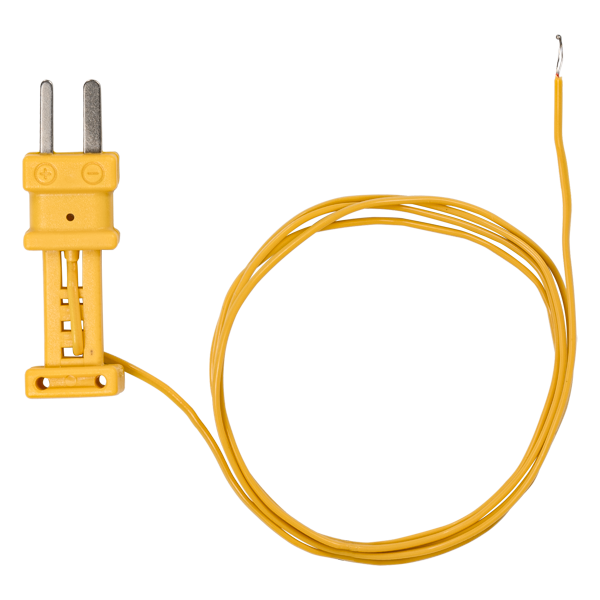

ATL301KIT Deluxe Modular Test Lead Kit	ATLCAP Test Lead Protective Cap Shield Set	ATT39 Temperature Probe, K-Type DT300 Series Probe

UL Listed	cULus
IEC 61010	IEC 6101-2-032
CE Conformity	Yes
CAT Rating	CAT IV 300V/CAT III 600V

	Data Sheet - English
	Manual - English
	Hi-Res picture
	Line Drawing

Manual (Eng)	Yes
Test Leads	ATL55
Batteries	AAA (2)
Temperature Probe	ATT29
Pouch/Case	AC519
Pipe Clamp Probe	ATTPC3
